Features:
Latest high-efficiency class A/B topology
Compact size with ambient backlit logo
RCA “pass thru” output for easy system expansion
Fully variable crossovers (12dB per octave)
Handles HI and LO level input to 12V
Proprietary Vega bass boost EQ up to 12dB
Specifications:
1 channel amplifier
370W x 1 @ 4Ω RMS
600W x 1 @ 2Ω RMS
Class A/B
Direct short, thermal, & overload circuits protect amplifier
Power supply 10-16VDC
Sensitivity 200mV-6V
Variable 12dB high, low, & subsonic crossovers
Fuse rating - 30 Amp x 3

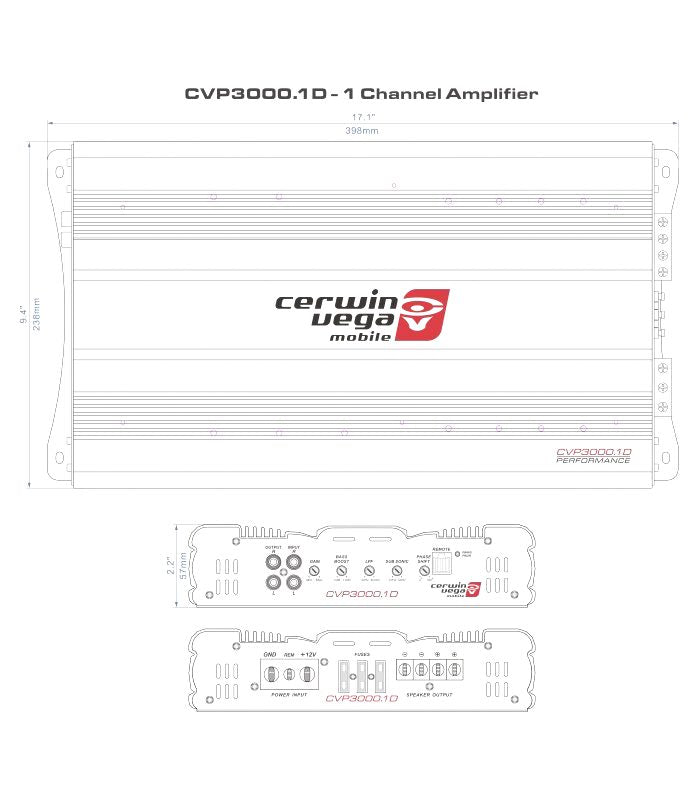

Dimensions:
15.76″ x 9.38″ x 2.25″ (400mm x 238mm x 57mm)
