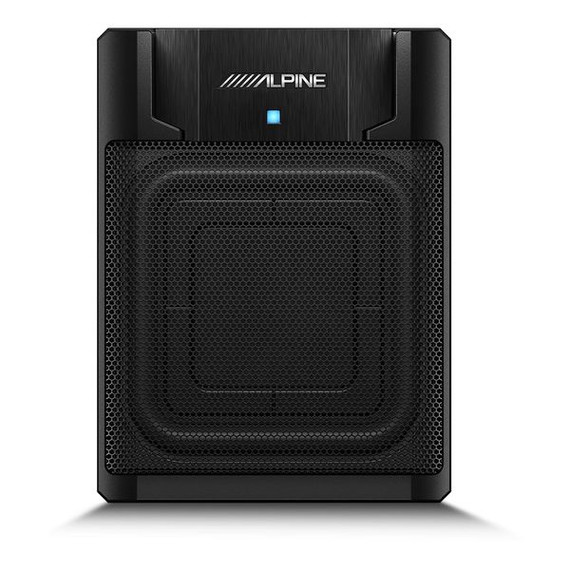

Alpine PWE-M770 7x7” Powered Subwoofer – Compact Powerhouse for Big Bass

Introducing the Alpine PWE-M770 Powered Subwoofer, the perfect solution for adding rich, powerful bass to your car audio system without taking up valuable space. This ultra-compact subwoofer features a high-excursion 7x7” square subwoofer housed in a sleek, durable all-metal alloy casing, delivering 150W RMS of deep bass performance in a design that fits comfortably under a seat or in tight spaces.

With easy-to-access side controls for Phase, Gain, LP Crossover, and Remote Sub Level, the PWE-M770 offers exceptional flexibility and customization to fine-tune your sound. Whether you're listening to bass-heavy beats or subtle low-frequency tones, this subwoofer ensures that every note is delivered with clarity and precision.

Key Features

1. Compact and Space-Saving Design

• Ultra-Compact Size: Measures just 255mm wide, 190mm tall, and 74mm deep, making it ideal for under-seat installation or other tight spaces in your vehicle.
• Sleek Profile: Designed to blend seamlessly into your car’s interior while delivering big sound.

2. Big Bass in a Small Package

• High-Excursion 7x7” Square Subwoofer: Provides impressive bass output with minimal distortion.
• 150W RMS Power: Delivers consistent, deep bass for all your music needs.
• 300W Peak Power: Handles dynamic low-frequency bursts with ease.
• Frequency Response: 10Hz – 150Hz, covering a wide low-frequency range for rich, deep tones.

3. Durable and Robust Construction

• All-Metal Alloy Casing: Ensures durability and long-lasting performance without compromising sound quality.
• Built to Last: Designed to withstand the rigors of daily use while maintaining superior bass performance.

4. Easy Installation and Customization

• Side Panel Controls:
  • Phase: Adjust phase settings to match your sound system.
  • Gain: Control the subwoofer’s volume level.
  • LP Crossover: Fine-tune the frequency range for optimal bass performance.
  • Remote Sub Level Access: Add an optional bass controller (sold separately) for convenient adjustments on the go.
• RCA Inputs: Simplifies integration with factory or aftermarket audio systems.

Specifications

General Features

• Subwoofer Type: Powered 7x7” Square Subwoofer Box
• Frequency Response: 10Hz – 150Hz
• Power Handling:
  • 150W RMS Power
  • 300W Peak Power
• Sensitivity: 90dB

Design and Build

• Construction: Durable Cast Metal Alloy
• Dimensions:
  • Width: 255mm
  • Height: 190mm
  • Depth: 74mm

Why Choose the Alpine PWE-M770 Powered Subwoofer?

• Compact Yet Powerful: The 7x7” square subwoofer delivers exceptional bass without taking up much space, fitting perfectly under a seat or in tight areas.
• Superior Sound Quality: With 150W RMS power and a wide frequency response, the PWE-M770 ensures deep, accurate bass reproduction.
• Customizable Controls: Easy-to-access side panel adjustments allow you to fine-tune the subwoofer for your specific audio setup.
• Durable Design: The cast metal construction ensures long-lasting performance, even during intense use.
• Easy Integration: RCA inputs simplify the connection process for both factory and aftermarket audio systems.

How to Install the PWE-M770 Powered Subwoofer

1. Choose a Location: The compact design allows the subwoofer to be installed under most car seats or in other tight spaces.
2. Connect the Power and Ground: Wire the subwoofer to your car’s power supply, ensuring a secure ground connection.
3. Connect to Your Audio System: Use the RCA inputs to integrate the subwoofer with your factory or aftermarket head unit.
4. Adjust the Settings: Use the side panel controls to set the Phase, Gain, and LP Crossover for optimal sound quality.
5. Add a Remote Bass Controller (Optional): For convenient bass level adjustments, connect an optional remote bass controller (sold separately).
6. Test the System: Play your favorite music and fine-tune the controls for the perfect bass response.

Frequently Asked Questions (FAQs)

1. Will this subwoofer fit under my car seat?

Yes! The PWE-M770 is designed with an ultra-compact size (255mm x 190mm x 74mm), making it suitable for under-seat installation in most vehicles.

2. Is the bass controller included?

No, the bass controller is sold separately, but the subwoofer includes a connection for easy integration if you choose to add it.

3. What is the power output of the subwoofer?

The PWE-M770 delivers 150W RMS power and can handle up to 300W peak power, providing deep and powerful bass.

4. Can this subwoofer be connected to a factory audio system?

Yes, the PWE-M770 features RCA inputs, making it easy to integrate with both factory and aftermarket systems.

5. Is the subwoofer durable?

Absolutely! The all-metal alloy casing ensures durability and long-lasting performance, even in demanding conditions.
