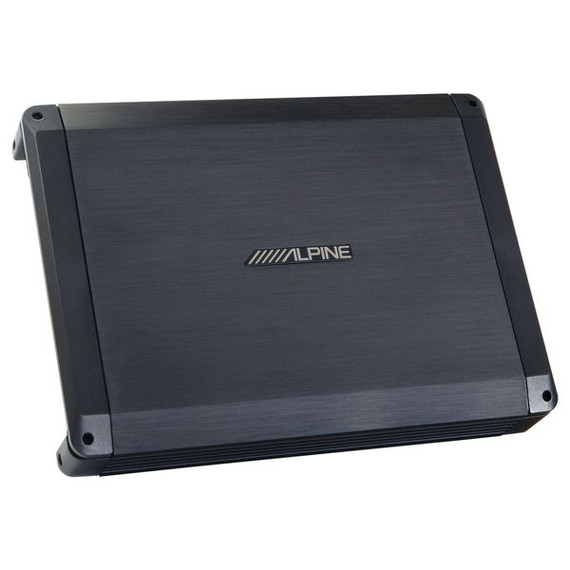

Alpine BBX 4/3/2 Channel Power Amplifier – Maximum Performance, Minimum Cost

Upgrade your car audio system with the Alpine BBX 4/3/2 Channel Power Amplifier, delivering high output power and exceptional performance at an unbeatable price. Designed to fit seamlessly into virtually any setup, this amplifier is the perfect solution for music enthusiasts looking to enhance their sound system on a budget.

With high pass and low pass filters, you can fine-tune the frequency points for highs, mids, and bass to perfectly match your speakers and ensure optimal efficiency. The built-in Bass EQ takes your listening experience to the next level by maximizing bass performance.

Key Features

1. Powerful Audio Output

• Class A/B Amplifier: Combines efficiency with superior sound quality for rich, dynamic audio.
• Power Handling:
  • 1200 Watts Max Power for impactful sound performance.
  • 4 x 50 Watts RMS Power at 4 Ohms for balanced and clean output.
  • 4 x 70 Watts RMS Power at 2 Ohms for enhanced power output.
  • 2 x 130 Watts Bridged Power at 4 Ohms for driving subwoofers or powerful speaker setups.

2. Flexible Channel Configuration

• 4/3/2 Channel Design:
  • Use as a 4-channel amp to power speakers.
  • Configure as a 3-channel amp for a mixed system.
  • Bridge to 2-channel mode for high-powered subwoofers or larger speakers.

3. Customizable Sound Control

• High Pass and Low Pass Filters: Adjustable crossover range of 50 - 400Hz (-12 dB/oct) for precise sound tuning across high, mid, and bass frequencies.
• Bass EQ: Boost low-end frequencies to achieve deeper, more powerful bass output.

4. Reliable Protection Features

• Thermal Protection: Prevents overheating to ensure long-lasting performance.
• Current Protection: Safeguards your amplifier from electrical surges and short circuits.

5. Compact and Versatile Design

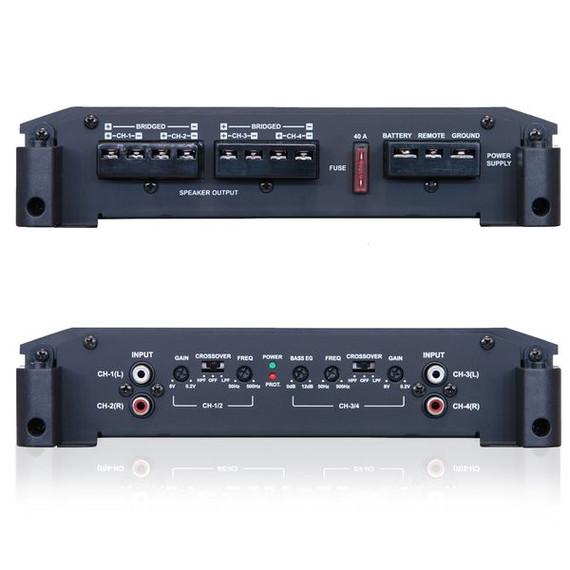

• Dimensions: 330 x 52 x 240 mm, allowing for easy installation in virtually any vehicle.
• Sleek and durable design that integrates seamlessly into your car’s audio system.

Specifications

• Type: Class A/B, 4/3/2 Channel Amplifier
• Frequency Response: 5 – 50KHz
• Power Handling:
  • 1200 Watts Max Power
  • 4 x 50 Watts RMS Power at 4 Ohms
  • 4 x 70 Watts RMS Power at 2 Ohms
  • 2 x 130 Watts Bridged Power at 4 Ohms
• Crossover Range: Adjustable 50 - 400Hz (-12 dB/oct)
• Protection Features: Thermal and Current Protection
• Dimensions: 330 x 52 x 240 mm

Why Choose the Alpine BBX 4/3/2 Channel Amplifier?

• Exceptional Power at a Great Price: Enjoy Alpine’s renowned sound performance without overspending.
• Flexible Configuration: Multiple channel options make this amplifier perfect for any system setup.
• Custom Sound Control: Fine-tune your audio with crossover adjustments and Bass EQ.
• Durable and Reliable: Built-in protection features ensure long-term performance and safety.
• Easy Installation: Compact dimensions fit most vehicles effortlessly.

Frequently Asked Questions (FAQs)

1. What does the "4/3/2 Channel" design mean?

This amplifier can power up to four speakers (4-channel mode), a combination of speakers and subwoofers (3-channel mode), or two powerful speakers or subwoofers in bridged mode for enhanced performance.

2. Can I use this amplifier to power a subwoofer?

Yes, the amplifier can be configured in bridged mode to provide 2 x 130 Watts of power at 4 Ohms, which is ideal for driving subwoofers.

3. What is the purpose of the crossover filters?

The high pass and low pass filters allow you to adjust the frequency range sent to your speakers, ensuring highs, mids, and bass are properly separated for optimized sound quality.

4. Does the amplifier have protection features?

Yes, the BBX amplifier includes thermal protection to prevent overheating and current protection to guard against electrical issues, ensuring safe and reliable operation.

5. Is this amplifier easy to install in my vehicle?

Absolutely! With its compact size (330 x 52 x 240 mm), the amplifier is designed to fit into most vehicles without requiring extensive modifications.
