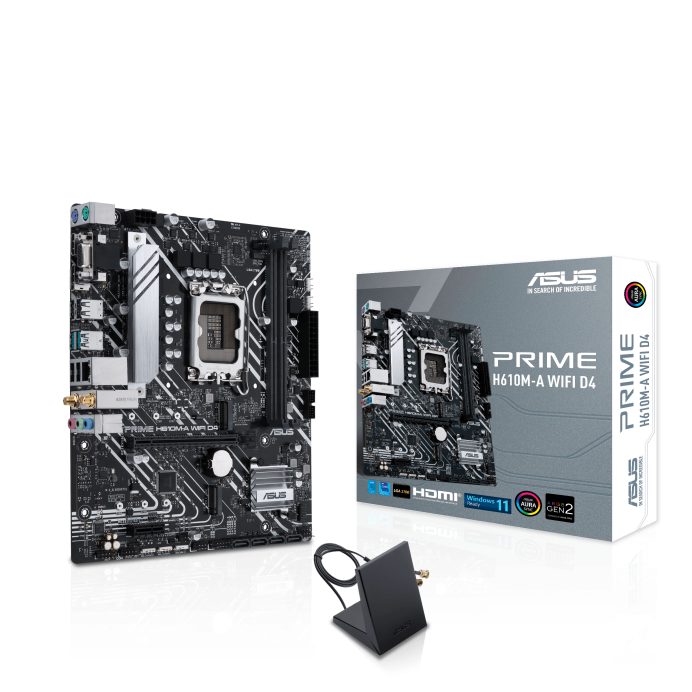

Asus Prime H610M-A Wifi D4 Intel H610 Lga1700 Mic-Atx Motherboard With Ddr4 Pcie 4.0 Dual M.2 Slots Intel 1 Gb Ethernet Wifi 5 Displayport

ASUS PRIME H610M-A WIFI D4 INTEL H610 LGA1700 MIC-ATX MOTHERBOARD WITH DDR4 PCIE 4.0 DUAL M.2 SLOTS INTEL 1 GB ETHERNET WIFI 5 DISPLAYPORT

• Intel?? LGA 1700 socket: Ready for 12th Gen Intel?? processors

• Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+

• Ultrafast connectivity: 32Gbps M.2 slot, Intel?? 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports

• Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

CPU

Intel?? Socket LGA1700 for 12th Gen Intel?? Core???, Pentium?? Gold and Celeron?? Processors*

Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel?? Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel?? H610 Chipset

Memory

2 x DIMM,  DDR4 3200 Non-ECC

Dual Channel Memory Architecture

Supports Intel?? Extreme Memory Profile (XMP)

Graphics

1 x DisplayPort

1 x D-Sub port

1 x HDMI?? port

Expansion Slots

Intel?? 12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel?? H610 Chipset

1 x PCIe 3.0 x1 slot

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel?? H610 Chipset

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

4 x SATA 6Gb/s ports

Ethernet

1 x Intel?? 1Gb Ethernet

Wireless & Bluetooth

1 x Wi-Fi Module

USB

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 5 ports)

1 x USB 3.2 Gen 1 header

2 x USB 2.0 headers

3 x Audio jacks

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI?? port

1 x D-Sub port

1 x Wi-Fi Module

1 x Intel?? 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard (purple) port

1 x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 3 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x COM Port header

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

AURA Sync

- AURA RGB headers

- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Fan Xpert 2+

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

ASUS CPU-Z

MyASUS

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x I/O Shield

1 x M.2 SSD screw package

Installation Media

1 x Support DVD

Documentation

1 x User guide

Operating System

Windows?? 11 64-bit, Windows?? 10 64-bit

Form Factor

mATX Form Factor

9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
