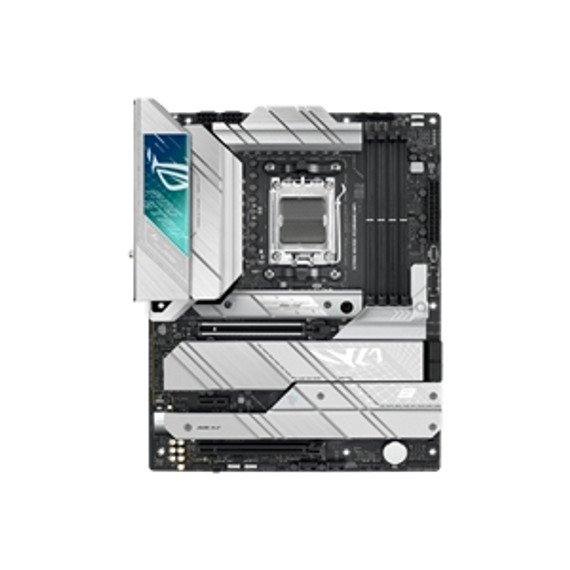

Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen™ 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.
16 + 2 teamed power solution rated for 70A per stage
Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
AI Cooling II uniquely balances noise and thermals for your system with a single click
An x16 slot and two on-board M.2 slots are PCIe Gen 5-ready
6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
Easy installation for GPUs and SSDs, plus simple BIOS resets and updates
Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
PERFORMANCE
AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
16 + 2 Power Stages
DDR5 6400+ (OC)
4 x DIMM
Dual channel
Expansion Slots
1 x PCIe 5.0 x16 SafeSlot [CPU]
1 x PCIe 4.0 x16 Slot [Chipset]
1 x PCIe 3.0 x1 Slot [Chipset]
4 x M.2 Slots
2 x M.2 2242-2280 (PCIe 5.0 x4)
1 x M.2 2242-22110 (PCIe 4.0 x4)
1 x M.2 2242-2280 (PCIe 4.0 x4)
ALL-ROUND PERFORMANCE
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-A, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build.
PCIE 5.0
Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
DYNAMIC OC SWITCHER
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher dynamically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance on both sides of the aisle.
CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control current, power, and thermals in creative new ways. In its simplest form, you can let your system run unrestricted during lighter loads and set breakpoints to gradually reduce power consumption as temperature increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate parameters independently so that you can bend CPU performance to your will.
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
MEMORY
DDR5 STRENGTH
For those who want to fly past stock DDR5 speeds, the Strix X670E-A is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
