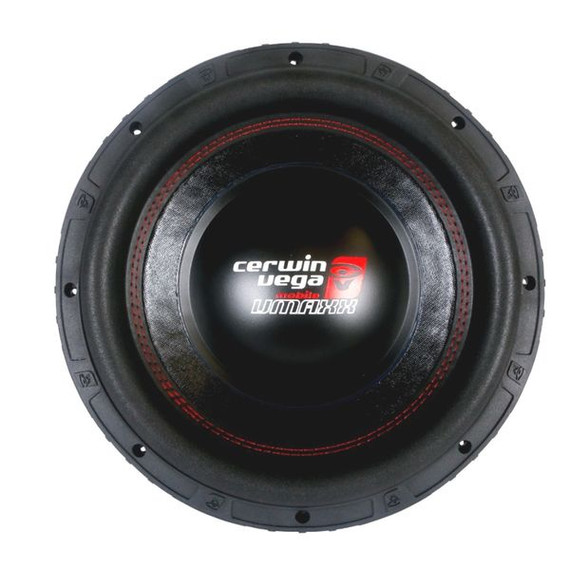

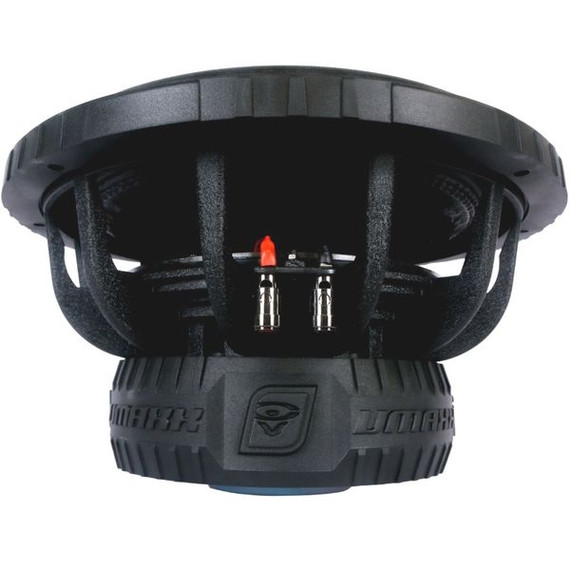

VMAX15D2 – 15” Dual 2-Ohm High-Performance Subwoofer – 3000W MAX / 1500W RMS

The VMAX15D2 is a 15-inch dual 2-ohm high-performance subwoofer designed to deliver earth-shaking bass and superior sound quality. With a power handling of up to 3000W MAX and 1500W RMS, this subwoofer is built for audiophiles and bass enthusiasts who demand the best. Featuring an industrial-strength aluminum cast frame, a treated semi-pressed pulped cone, and advanced cooling technologies like the elevated motor structure, the VMAX15D2 ensures durability and optimal performance even under heavy use. Whether you're upgrading your car audio system or building a professional-grade setup, the VMAX15D2 stands out as the ultimate choice for deep, distortion-free bass.

Key Features

1. High-Power Performance

• Delivers 3000W MAX power and 1500W RMS power, ensuring remarkable bass output and consistent performance.
• Made for high-performance car audio systems and bass-heavy tracks.

2. Heavy-Duty Build

• Industrial-strength aluminum cast frame provides superior durability and stability for long-term reliability.
• Treated semi-pressed pulped cone ensures smooth sound reproduction and minimal distortion.

3. Advanced Cooling System

• The elevated motor structure increases airflow, keeping the subwoofer cool even during extended use.
• Black coated 3-inch voice coil enhances thermal capability, preventing overheating and improving efficiency.

4. Enhanced Suspension and Control

• Features an oversized spider, ensuring precise control over cone movement for accurate bass output.
• Polished bumped backplate and Klippel optimized motor/suspension symmetry deliver improved sound quality and reduced distortion.

5. Optimized Design for Deep Bass

• Designed with a polished black chrome distortion system, ensuring low distortion and clean audio performance.
• Xmax of 14mm allows for deep bass extension and powerful low-frequency response.

6. Versatile Installation

• Built for flexibility with a mounting depth of 7.48 inches (190mm) and a mounting diameter of 13.98 inches (355mm), making it compatible with a variety of enclosures.

Specifications

General Specifications:

• Power Handling:
  • MAX: 3000W
  • RMS: 1500W
• Impedance: Dual 2-Ohm (Re(O): 1 Ohm / 4 Ohm).
• Sensitivity (SPL): 86.6 dB.
• Frequency Response (Fs): 31.48 Hz.
• Displacement: 0.15 ft³ (4.24L).

Mechanical and Electrical Design:

• Voice Coil: Black coated 3-inch for higher thermal capability.
• Motor Structure: Elevated design for increased cooling.
• Spider: Oversized for enhanced cone stability.
• Frame: Heavy industrial-strength aluminum cast.
• Backplate: Polished bumped for improved performance and durability.
• BL (Motor Force Factor): 19.3 T*M.
• Xmax (Maximum Excursion): 14mm.

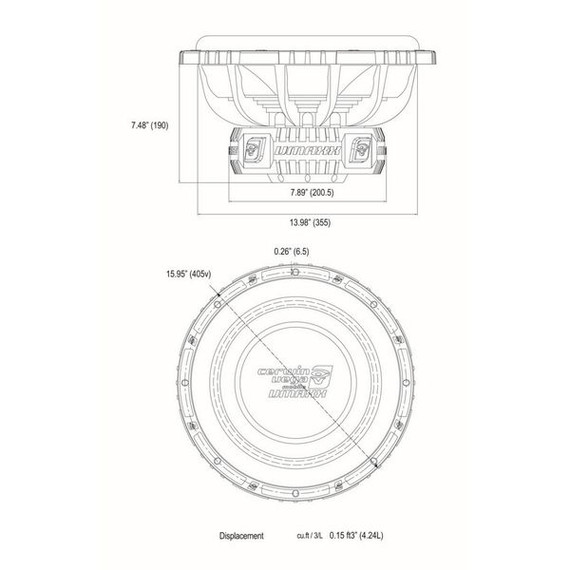

Physical Dimensions:

• Mounting Depth (D): 7.48 inches (190mm).
• Mounting Diameter (B): 13.98 inches (355mm).
• Total Diameter (A): 15.95 inches (405mm).
• Screw Hole Diameter (C): 0.26 inches (6.5mm).

Amplifier Pairing Options

To achieve optimal performance, pair the VMAX15D2 with the following amplifiers:

• For 1 Subwoofer: Use the CVPRO5K amplifier for a 4-Ohm load.
• For 2 Subwoofers: Use the CVPRO5K amplifier for a 1-Ohm load.

These amplifier configurations ensure the subwoofer operates at peak efficiency, delivering clean and powerful bass.

Why Choose the VMAX15D2 Subwoofer?

• Unmatched Power: With 3000W MAX output and 1500W RMS, this subwoofer delivers thunderous bass.
• Durable Construction: Built with premium materials like the aluminum cast frame and black chrome components for long-lasting performance.
• Precision Engineering: Features advanced cooling, optimized motor symmetry, and oversized components for minimal distortion and maximum output.
• Flexible Installation: Compact and versatile design fits most enclosures.
• Professional-Grade Sound: Ideal for car audio enthusiasts and anyone seeking deep, accurate bass.

Frequently Asked Questions (FAQs)

1. How powerful is the VMAX15D2 subwoofer?

The VMAX15D2 delivers a maximum power output of 3000W and a continuous RMS power of 1500W, making it perfect for handling high-powered audio signals.

2. What type of enclosure works best for this subwoofer?

The VMAX15D2 is compatible with both sealed and ported enclosures, depending on your desired bass response. For tighter bass, use a sealed enclosure, and for deeper, louder bass, opt for a ported box.

3. Can I use this subwoofer with a single amplifier?

Yes, for a single subwoofer, you can pair it with the CVPRO5K amplifier configured for a 4-Ohm load.

4. What does "Dual 2-Ohm" mean?

The subwoofer has dual voice coils, each with a 2-Ohm impedance. This allows for flexible wiring configurations to achieve 1-Ohm or 4-Ohm loads, depending on your amplifier setup.

5. Is it suitable for professional-grade audio systems?

Absolutely! The advanced features like the Klippel-optimized motor, elevated motor structure, and oversized spider make it ideal for professional-grade setups requiring precise and powerful bass.

6. What is the Xmax of this subwoofer?

The Xmax (maximum linear excursion) is 14mm, allowing the subwoofer to produce deeper bass with impressive clarity and minimal distortion.

7. How do I achieve optimal cooling during high-power operation?

The elevated motor structure and black coated 3-inch voice coil are designed to enhance cooling, ensuring the subwoofer remains efficient even during extended use.
