Cerwin Vega

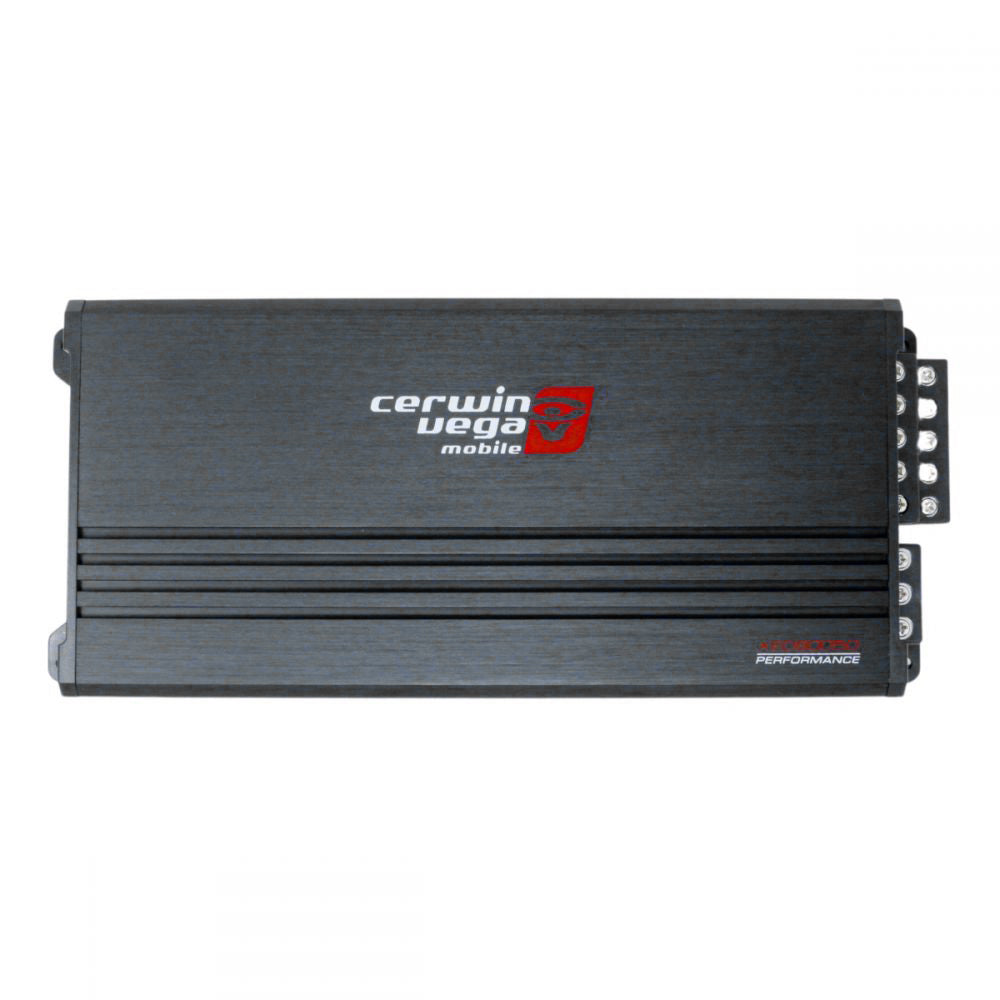

Cerwin Vega Amplifier Xed Series 5 Ch 65W Rms X 4 @ 4Ohm / 90W Rms X 2Ohm + 300W Rms @ 2Ohm
Cerwin Vega
Cerwin Vega Amplifier Xed Series 5 Ch 65W Rms X 4 @ 4Ohm / 90W Rms X 2Ohm + 300W Rms @ 2Ohm
The Latest High-Efficiency Class D Topology Amplifier is a compact and powerful 5-channel amplifier that delivers exceptional performance. With a maximum power of 1000W, this amplifier is perfect for enhancing your audio system.
Featuring a compact size with an ambient backlit logo, this amplifier not only provides excellent sound quality but also adds a stylish touch to your car interior. The RCA "Pass Thru" output allows for easy system expansion, making it convenient to connect additional audio components.
The amplifier is equipped with fully variable crossovers (12dB per octave), allowing you to customize the sound to your preference. It handles both HI and LO level input to 12V, ensuring compatibility with various audio sources.
With a 2 O stable stereo and 4O mono (CH3/4) for 3 Ch mode, this amplifier offers versatility in configuration. The proprietary Vega Bass Boost EQ provides up to 12dB of bass boost, allowing you to enhance the low-frequency response for a more immersive audio experience.
Specifications:
- Amplifier: 5 Channel
- Amplifier Power: 1000W MAX
- RMS Power(2O): 4 x 90W + 1 x 300W
- RMS Power (4O): 4 x 65W + 1 x 200W
- Topology: Class D
- Frequency Response: 10Hz~30KHz+10Hz~250Hz
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0VDC – 16.0VDC
- Idle Current: (0.7A)
- Distortion - THD (1KHz@4O): <0.1%
- Distortion - S/N Ratio (A weight @ 1W): -85dBA
- Distortion - S/N Ratio (A weight @ FP): -101.1dBA
- Input Sensitivity Low: 500mV – 12V
- Input
