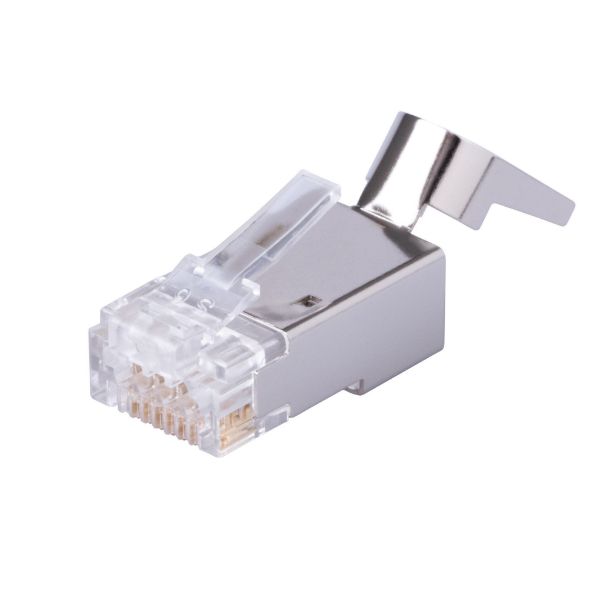

DYNAMIX Cat6/6A STP External Ground Push-Through Plug – High-Performance Shielded Termination

The DYNAMIX Cat6/6A STP External Ground Push-Through Plug is the perfect solution for high-speed, shielded cable terminations in professional and industrial environments. Designed for solid and stranded cables, this 2-piece plug with an orange insert ensures precision alignment and secure connections. With a 3-prong design and 50-micron gold-plated contacts, it provides reliable signal conductivity and long-lasting durability. Supporting a maximum conductor size of 1.35mm, this plug is compatible with both Cat6 and Cat6A shielded twisted pair (STP) cables. The external ground connection ensures superior shielding, making it ideal for environments with high EMI (electromagnetic interference) or RFI (radio frequency interference). Each pack includes 20 plugs, making it perfect for networking installations, upgrades, and repairs.

Key Features

1. Push-Through Design for Easy and Accurate Termination

• Simplified Installation: Conductors push through the plug for proper alignment and cutting, reducing errors during termination.
• 2-Piece Design with Insert: Includes an orange insert for precise wire positioning and added convenience.

2. External Ground for Superior Shielding

• Enhanced Signal Protection: Provides an external grounding connection to ensure proper shielding for STP (shielded twisted pair) cables.
• Ideal for High-Interference Environments: Perfect for setups in industrial, commercial, or data center environments where EMI/RFI could impact performance.

3. 50-Micron Gold-Plated Contacts

• Reliable Conductivity: The 50-micron gold-plated contacts ensure superior signal transmission and resist corrosion.
• Durable and Long-Lasting: Engineered for consistent performance over time.

4. Compatible with Cat6 and Cat6A STP Cables

• Supports High-Speed Networks: Designed for Gigabit Ethernet and high-performance networking applications.
• Versatile Use: Works with both solid and stranded shielded cables.

5. 20 Plugs Per Pack

• Convenient Multipack: Includes 20 plugs, making it ideal for medium-sized projects or ongoing installations.

6. Supports Larger Conductor Sizes

• Max Conductor Size: Accommodates conductors up to 1.35mm, providing compatibility with larger cables.

Why Choose the DYNAMIX Cat6/6A STP Push-Through Plug?

• Simplified Termination: The push-through design and 2-piece type with insert make installation quick and error-free.
• Exceptional Shielding: External ground connection ensures optimal performance in shielded environments.
• Durable and Reliable: 50-micron gold plating provides long-lasting corrosion resistance and conductivity.
• Wide Compatibility: Supports both solid and stranded Cat6 and Cat6A STP cables for versatile applications.
• Professional Quality: Designed for demanding networking environments, including industrial, commercial, and data centers.

Specifications

• Connector Type: Push-through plug for Cat6/6A STP (Shielded Twisted Pair) cables.
• Design:
  • 2-piece type with orange insert for easier installation.
  • 3-prong design for secure connections.
• Contact Plating: 50-micron gold plating for superior signal quality.
• External Ground: Yes, for enhanced shielding.
• Max Conductor Size: 1.35mm, suitable for larger cables.
• Compatibility: Cat6 and Cat6A STP cables (solid and stranded types).
• Pack Size: 20 plugs per pack.
• Applications: High-performance networking, industrial setups, and areas with high EMI/RFI.

Frequently Asked Questions (FAQs)

1. What is included in the pack?

Each pack includes 20 push-through plugs with:

• External grounding capability.
• 2-piece design with orange insert for accurate wire positioning.

2. What cable types are compatible with these plugs?

These plugs are compatible with Cat6 and Cat6A STP (shielded twisted pair) cables, including both solid and stranded types.

3. What is the maximum conductor size these plugs can accommodate?

The plugs support a maximum conductor size of 1.35mm, making them suitable for larger cables.

4. What is the purpose of the external ground?

The external ground enhances the shielding of STP cables, protecting against electromagnetic and radio frequency interference (EMI/RFI), ensuring high-performance signal transmission in challenging environments.

5. How does the push-through design work?

The push-through design allows the cable conductors to pass through the plug, ensuring proper alignment and simplifying the termination process.

6. Are the contacts durable?

Yes, the 50-micron gold-plated contacts provide excellent conductivity and resist corrosion, ensuring long-lasting performance.

7. Do I need special tools for installation?

A crimping tool compatible with push-through plugs is required to terminate and secure the connectors properly.

8. Where can these plugs be used?

These plugs are ideal for:

• Data centers.
• Industrial and commercial setups.
• High-performance networking environments.
• Areas with high EMI or RFI interference.
