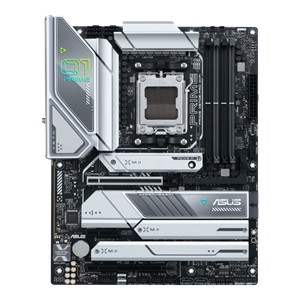

ASUS Prime series motherboards are expertly engineered to unleash the full potential of the latest AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670E-PRO WIFI-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
The ASUS PRIME X670E-PRO WIFI-CSM offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.
Performance
AMD Socket AM5 for AMD Ryzen™ 7000 Series
Desktop Processors
Expansion Slots
・1 x PCIe 5.0 x16 SafeSlot Core+
・1 x PCIe 4.0 x16 Slot (max @x4)
・1 x PCIe 4.0 x4
14+2 Teamed Power Stages (70A)
4 x DIMM
・DDR5 6400(OC)
・Dual Channel
・OptiMem II
4 x M.2 Slots
・1 x M.2 2280 (PCIe 5.0 x4 mode)
・2 x M.2 2280 (PCIe 4.0 x4 mode)
・1 x M.2 22110 (PCIe 3.0 x4 & SATA modes)
Cooling
VRM Heatsinks
All M.2 Slots with Dedicated Heatsinks
CPU / CPU OPT Fan
Headers & AIO Pump
Header
4x Chassis Fan Headers
Chipset Heatsink
Water Pump + Header
Personalization
Aura Sync Shroud RGB LED
Crystal Sound 3
・Realtek® S1220A Codec
・DTS:X® Ultra
・Two-Way AI Noise Cancelation
1 x 3-pin Addressable Gen 2
RGB Header
1 x 3-pin Addressable Gen 2
RGB Header
1 x 4-pin Aura RGB Header
Connectivity
HDMI®
DisplayPort
2 x USB 3.2 Gen 2
(1 x Type-A, 1 x Type-C®)
1 x USB 3.2 Gen 1 Type-C
1 x USB 3.2 Gen 2 Type-A
Realtek 2.5Gb Ethernet
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2x2 Type-C®
4 x USB 3.2 Gen 1 Type-A
WiFi 6E
BIOS FlashBack™ Button
5 x Audio Jacks
1 x Front USB 3.2 Gen 2 Type-C®
1 x Front USB 3.2 Gen 1 Header
1 x Thunderbolt™ (USB4®) Header
3 x Front USB 2.0 Headers
Product Code:
PID26936
